GB-AM series mice independent ventilation cage

Model: GB-AM80-1

Specification: 1750mm*500mm*2000mm

Feature advantages:

GB-AM series mice independent ventilation cage with GBA1000 independent ventilation host:

A. The main material of the fuselage is selected from 304 stainless steel. The main material of the front panel is nylon. The strength plastic of anti -collision and chemical erosion, low weight, corrosion resistance

C. Maximum exhaust volume: 1000m3/h; gradient pressure difference (PA): -40 ~+40 (adjustable); fully guarantee the demand for the amount of gas replacement of each cage box

D. Low noise operation, equipment running noise: <55 decibels

E. Equipped with two -stage filter two -level filters, replacement convenient for replacement

F. Low -power operation: Running power ≤180W

G. Automatic switching day and night operation mode to avoid affecting animal activities, rest, and ensuring animal welfare.

H, host monitoring system: CNC microprocessor control, which can automatically provide a constant airflow rate and filter load supply.

parameter:

Note: The height contains a cage and aes, which does not contain ventilation pipeline. The specifications can provide customized services according to customer needs.

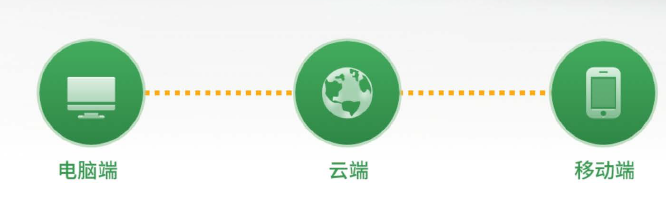

Support remote online viewing and management equipment:

Multiple IVC remote monitoring in each functional area can be displayed in a computer server in an outer area.

l Support the parameter over the preset scope of the alarm, and the alarm information storage capacity> 500 records; the basic state of multiple IVCs in one page is used in one page, and click a single IVC icon to read the detailed state of the IVC.

L provides remote computer measurement and control software, supports local monitoring room viewing, and supports multiple communication methods such as mobile apps or WeChat mini -programs. You can self -select the relevant authority according to the needs of user needs.

l can set the alarm range of various parameters on the monitoring software side. The scope of the warning (abnormal but available), such as the high speed of the fan and the excessive range of the filter differential pressure, defined as the scope of the warning.
